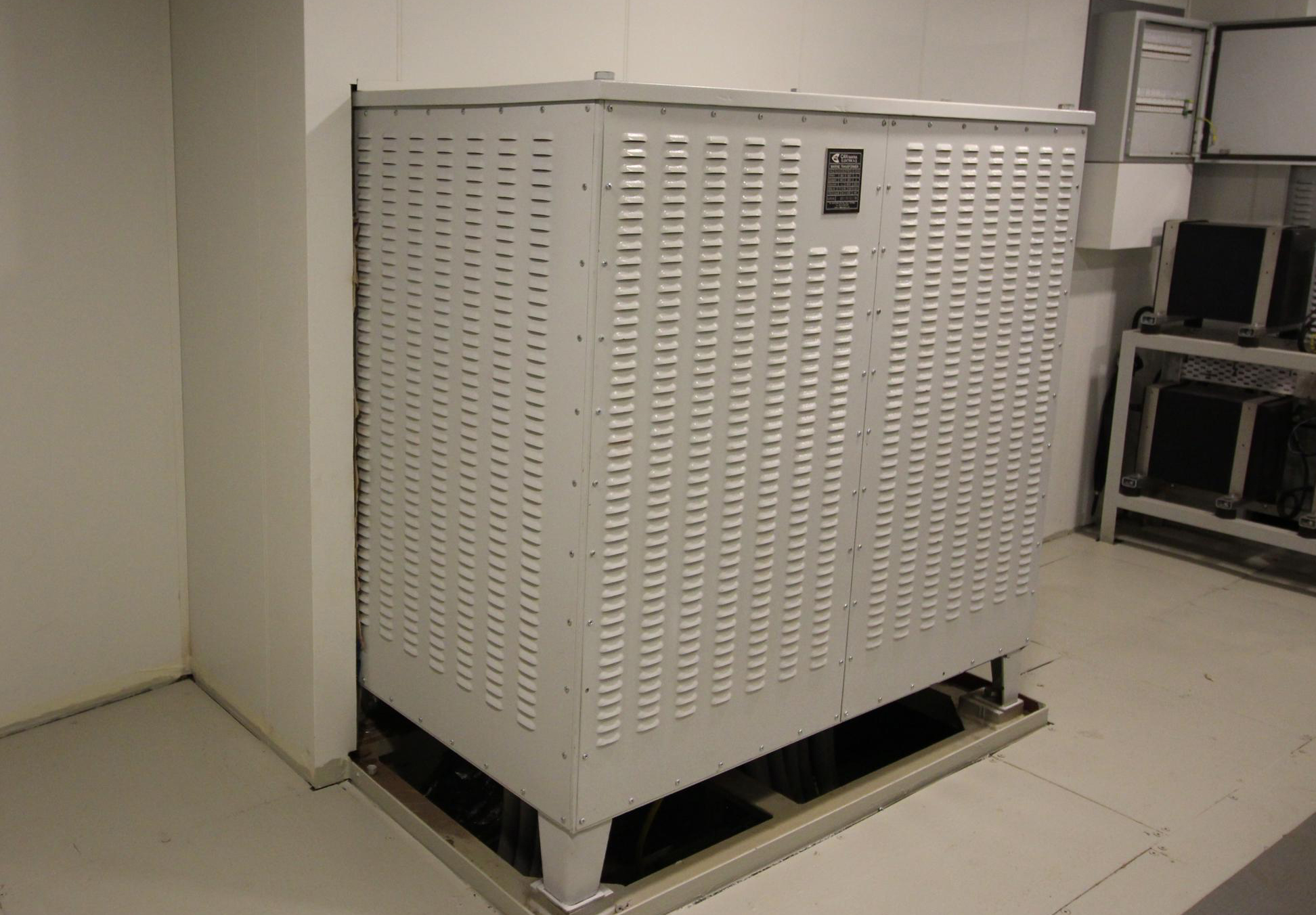

Marine-type Transformers

CAN MAKINA ELEKTRIK A.Ş. has developed single-phase and three-phase marine-type transformers, utilizing its extensive maritime experience in magnetic transformer design. These transformers are engineered to meet the rigorous demands of marine environments and are fully compliant with relevant standards and project requirements.

Technical Specification:

• Rated Power: Up to 2 MVA
• Rated Voltage: Standard options include 440 V and 690 V
  (Other voltage levels available upon request)
• Insulation System Temperature:
• Up to 155 ºC (Class F)
• Up to 180 ºC (Class H)
• Cooling Methods (for dry-type transformers):
• AN (Air Natural)
• AN/AF (Air Natural / Air Forced)
• A (Air cooling)
• Temperature Rise Class:
• Class B, Class F (standard)
• Class H (optional)

CAN MAKINA ELEKTRIK A.Ş. designs and manufactures its transformers with robust performance, operational safety and long service life in mind, making them ideal for shipboard power distribution and isolation applications.
